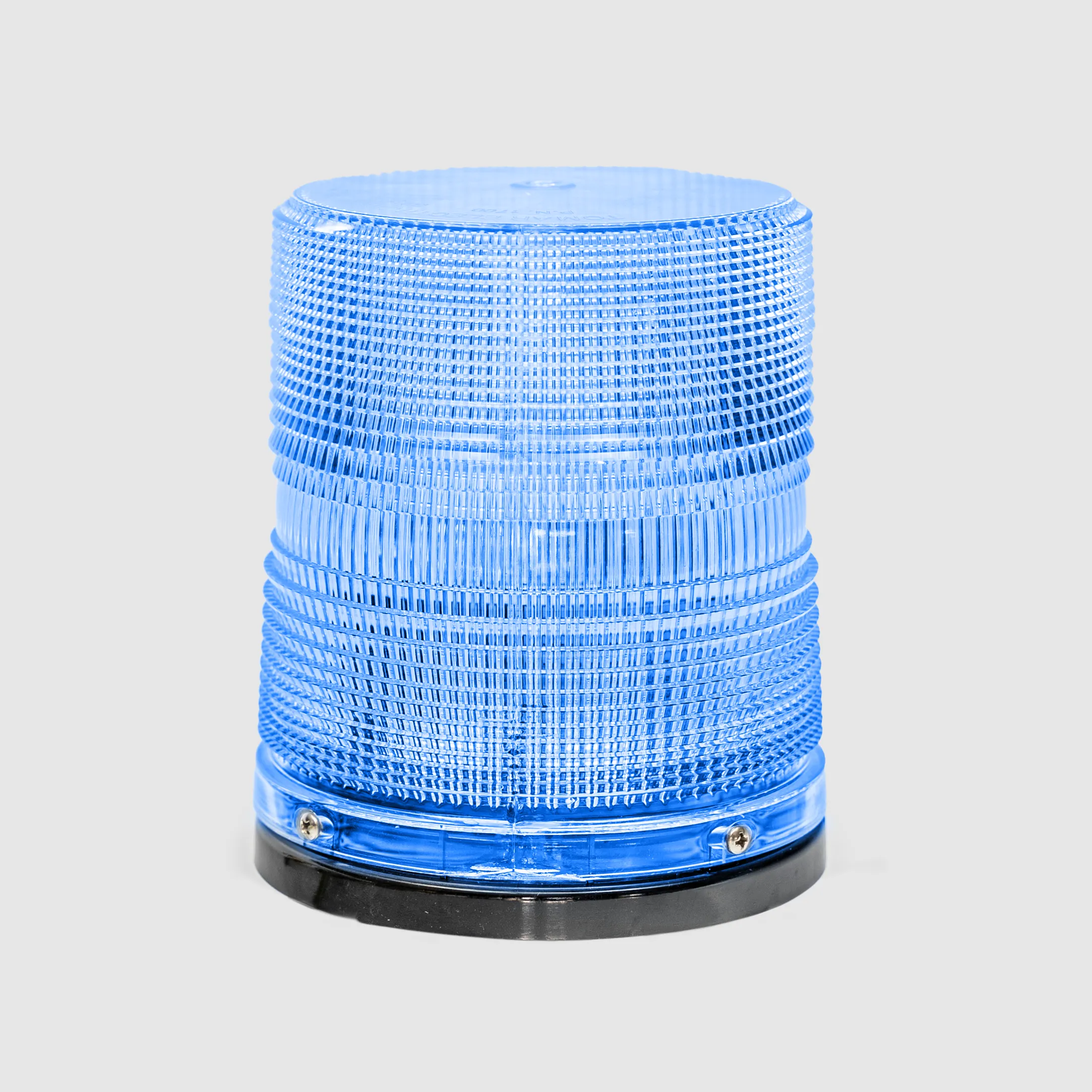

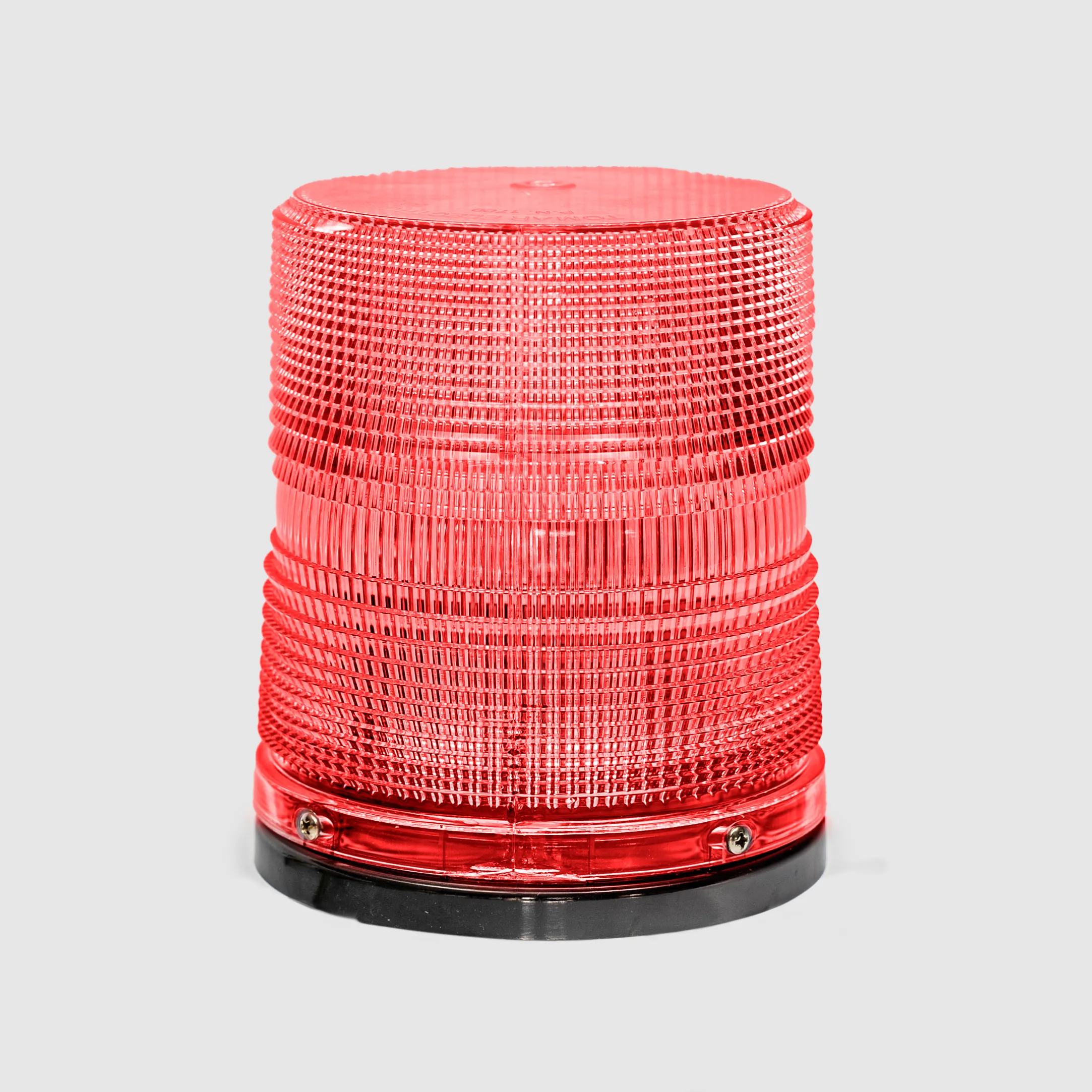

The model 804 family is a medium profile, single flash strobe light featuring universal mounting, full size 360° Lexan® lens, high efficiency regulated solid state power supply, and heavy duty xenon strobe lamp.
All units are polarity protected and have built-in filters to protect against radio interference and spike voltages. The model 804 features a fully potted Lexan®, multi-purpose mounting base which is vibration and water resistant. The 804 also features a field replaceable plug-in strobe lamp and state of the art energy storage capacitor for increased intensity.
Key Features
- Universal mounting
- Built-in RFI filters
- Solid state power supply
- Xenon strobe lamp

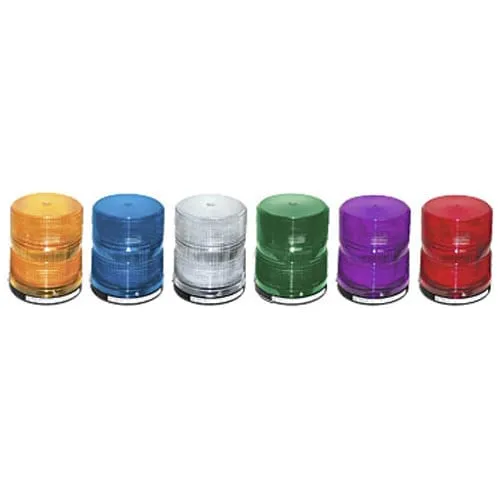

- Colors: amber, blue, clear, green, purple, & red
- 5 year warranty on power supply
- 1 year warranty on lamp
- UL listed (AC models only)
Specs
- Flash Rate: 80 to 95 flashes per minute
- Light Output: 480 effective candlepower (ECP)*
- Voltage and Amperage:
- 12-74VDC draws 1.25A @ 12V tapering to 0.2A average @ 74V
- 120VAC draws 0.3A average
- 240VAC draws 0.3A average
- Power Supply Output: 11 Watts (8 joules per flash, 800,000 peak candlepower**)
- Operating Temperature: -40°C to 65°C
- Size and Weight: 6.75” tall x 5.5” dia. x 2.2 lbs (171mm x 140mm x 1.0kg)
- Pipe Mount: Use 1/2-14 NPSL Straight Pipe Thread
Models and Options
| Model | Description | Voltage |
| 804–110 | AC strobe with 10” leads, UL listed | 120VAC, 50/60Hz |
| 804LC–110 | AC strobe with AC cord set, UL listed | 120VAC, 50/60Hz |
| 804–240 | AC strobe with 10” leads, UL listed | 240VAC, 50/60Hz |
| 804–1274 | DC strobe with 10” leads | 12 – 74VDC |
| 804MB–1274 | DC strobe, magnetic mount and 10’ coil cord | 12 – 74VDC |
| 804MBSC–1274 | DC strobe, magnetic mount and 10’ straight cord | 12 – 74VDC |
